Solar Panel Cable Clips / Solar PV Cable Clips
Overview

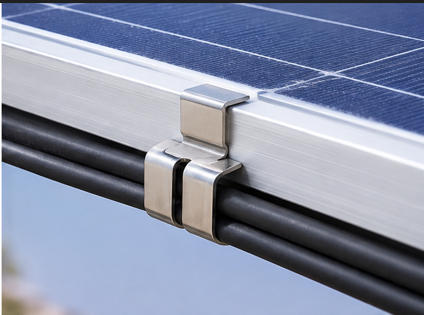

Solar panel cable clips are practical cable management accessories designed to secure and organize DC cables in photovoltaic (PV) installations. They help keep cables neatly routed along compatible solar panel frames and mounting rails, reducing cable sagging, movement, and potential abrasion. Available in stainless steel and selected weather-resistant engineering plastics, these clips can be supplied in single-cable, dual-cable, and multi-cable configurations. They are suitable for rooftop solar systems, ground-mounted solar farms, solar carports, and commercial photovoltaic projects. Model selection depends on cable dimensions, frame thickness, installation structure, and environmental conditions.
Get a Quote for This Product →Solar Panel Cable Clips / Solar PV Cable Clips - Features
Secure Cable Management
Keeps solar DC cables organized and properly positioned, helping reduce loose wiring and cable sagging.
Corrosion-Resistant Materials
Available in SUS304 or SUS316 stainless steel and selected engineering plastics, depending on application requirements.
Convenient Installation

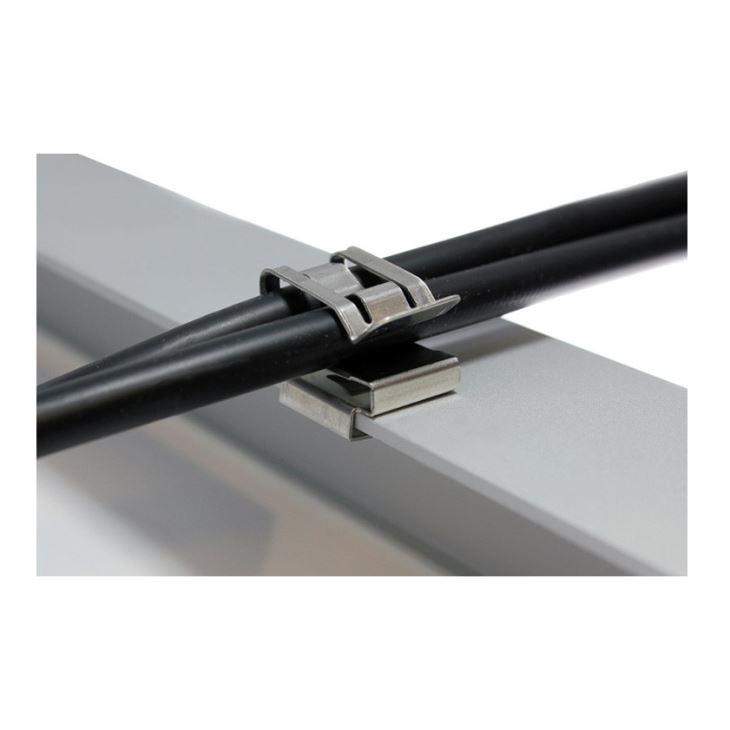

Selected snap-on designs attach directly to compatible PV module frames or mounting rails, reducing the need for additional fasteners.
Multiple Cable Configurations

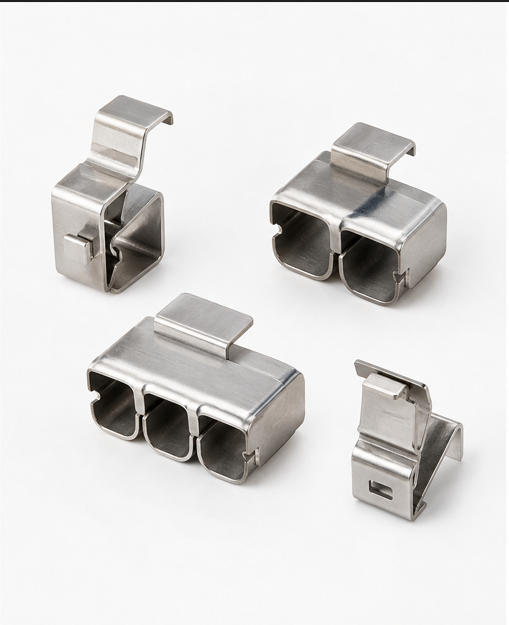

Single-cable, dual-cable, and multi-cable options accommodate different photovoltaic wiring layouts.
Cable Insulation Protection
Properly designed clamping structures and smooth edges help minimize abrasion and damage to cable insulation.
Bulk Supply and Customization
Different dimensions, materials, finishes, and packaging options can be discussed for project-based procurement.
Solar Panel Cable Clips / Solar PV Cable Clips - Specifications
| Material | SUS304 Stainless Steel, SUS316 Stainless Steel, or Weather-Resistant Engineering Plastic |
|---|---|
| Compatible Cables | Photovoltaic DC Cables |
| Cable Capacity | Single, Dual, or Multiple Cables, Depending on Model |
| Cable Size | Selected according to cable outside diameter or cross-sectional area |
| Installation Method | Snap-On, Spring-Loaded, or Other Specified Designs |
| Mounting Location | Compatible PV Module Frames or Mounting Rails |
| Surface Finish | Natural, Polished, or Passivated, Depending on Material and Model |
| Operating Environment | Outdoor Photovoltaic Installations and Related Applications |
| Dimensions | According to Model Drawing or Custom Requirements |
| Packaging | Bags, Inner Boxes, Cartons, or Customized Packaging |
| Supply Options | Bulk Supply; OEM/ODM Inquiries Welcome |
Solar Panel Cable Clips / Solar PV Cable Clips - Material and Size Characteristics
An O-ring's performance depends on its material, hardness and size. Common materials include NBR (oil resistant, economical), FKM (heat and chemical resistant), silicone (wide temperature range, soft) and EPDM (water and steam resistant), usually at 70–90 Shore A. Sizes are marked as ID × cross-section and follow standards such as ISO 3601 and AS568. Always check media, temperature and pressure when selecting.
Material and Corrosion Resistance
Stainless steel options include SUS304 and SUS316. For coastal, humid, or corrosive environments, material selection should be based on actual operating conditions.
Cable Capacity
Choose single-cable, dual-cable, or multi-cable clips according to the wiring layout. Confirm the maximum cable count and compatible cable diameter for each model.
Solar Frame Compatibility
The clip must match the PV module frame or mounting rail in terms of thickness, edge profile, and available installation space. Universal compatibility should not be assumed.
Clamping Structure and Cable Protection
The clip should hold cables securely without excessively compressing the insulation. Contact surfaces should be free of sharp burrs that could damage cables.
Outdoor Durability
Consider moisture, UV exposure, temperature variations, salt spray, and wind-induced vibration when selecting clips for long-term outdoor installations.
Installation and Maintenance
Select a design that meets project requirements for installation speed, removal, and cable repositioning. Reusability depends on the specific design and condition after removal.
Solar Panel Cable Clips / Solar PV Cable Clips - Applications
Rooftop Solar PV Systems
Organizes and secures DC cables beneath solar panels, helping reduce loose or hanging wiring.
Ground-Mounted Solar Farms
Supports cable routing and organization across photovoltaic module arrays and mounting structures.
Solar Carports
Keeps cables neatly routed along mounting structures in covered parking and solar canopy installations.
Commercial and Industrial Solar Projects
Suitable for rooftop photovoltaic systems installed on factories, warehouses, and commercial buildings.
Solar Installation and Distribution
A practical component for solar installers, EPC contractors, PV accessory distributors, and industrial hardware wholesalers.
Solar Panel Cable Clips / Solar PV Cable Clips - Selection & Ordering
1. Confirm Cable Specifications
Provide the cable outside diameter or cross-sectional area and the number of cables to be secured.
2. Check PV Frame Dimensions
Supply the module frame thickness, cross-sectional dimensions, or installation photographs to verify compatibility.
3. Select the Appropriate Material
Choose stainless steel grades or engineering plastics according to corrosion exposure, outdoor conditions, and project requirements.
4. Specify the Cable Routing Direction
Indicate whether cables should run parallel to the module frame or require a particular orientation or routing angle.
5. Provide the Order Quantity
Include the estimated quantity, sample requirements, destination country, and packaging preferences to support accurate quotation and shipping calculations.
6. Discuss Customization and OEM
For special dimensions, cable capacities, packaging labels, or branding requirements, provide drawings or samples for feasibility assessment.
Solar Panel Cable Clips / Solar PV Cable Clips - Quality & Delivery
Material Verification
Material grades, material certificates, and inspection documents can be discussed and confirmed according to order requirements.
Dimensional and Visual Inspection
Key inspection points include dimensions, clamping structure, burrs, and surface finish.
Fit and Compatibility Testing
Sample installation is recommended before bulk purchasing to verify compatibility with the specified cables and PV module frames.
Export Packaging
Inner packaging, outer cartons, and shipping labels can be arranged according to order quantity and export transportation requirements.
Bulk Order Fulfillment
Supply schedules depend on the selected model, stock availability, order quantity, and customization requirements.
Export Documentation
Commercial invoices, packing lists, product information, and other agreed export documents can be arranged according to the order requirements.
Suitable for Overseas Procurement
Supports sample orders, small-batch purchases, bulk orders, and OEM projects. Product packaging, labeling, cartoning, and export documentation can be arranged according to customer requirements.
Solar Panel Cable Clips / Solar PV Cable Clips - FAQ
How can I get a bulk quotation for solar panel cable clips?
Please provide the model number or product image, required quantity, cable specifications, PV frame dimensions, material requirements, destination country, and packaging preferences. This information helps us identify a suitable model and prepare an accurate quotation.
Can solar panel cable clips be customized?
Customization may be available for dimensions, materials, cable capacity, mounting structure, and packaging, depending on manufacturing capabilities. Provide drawings, samples, or detailed requirements for evaluation.
Can solar panel cable clips be reused?
Some snap-on clips can be removed and reinstalled. Reusability depends on the design and whether removal causes deformation, loosening, or damage.
Are stainless steel solar cable clips suitable for outdoor installations?
Suitable stainless steel models can be used in outdoor photovoltaic systems. Actual corrosion resistance depends on the material grade, surface finish, and operating environment. Coastal and highly corrosive environments require particular attention to material selection.
Are solar panel cable clips compatible with all solar panels?
Not necessarily. PV module frames differ in thickness, edge profile, and mounting structure. Providing frame dimensions or photographs helps verify compatibility.
How many cables can one solar panel cable clip hold?
Depending on the model, a clip may hold one, two, or multiple cables. Check the specified cable capacity and compatible cable diameter before ordering.
What materials are commonly used for solar cable clips?
Common materials include SUS304 stainless steel, SUS316 stainless steel, and selected weather-resistant engineering plastics. The appropriate material depends on the installation environment and corrosion resistance requirements.
What are solar panel cable clips used for?
Solar panel cable clips secure and organize DC cables in photovoltaic systems. They help reduce cable sagging, movement, and potential abrasion against mounting structures.
